Separating proteins and pouring gels by hand is a time-consuming and error-prone challenge.
The separation of differently sized protein mixtures in an electric field is an important analytical method in biochemitry. Smaller proteins travel faster through the gel than larger proteins, leading to a size dependent separation. Our protein gel electrophoresis chamber system includes all necessary equipment necessary for accurate and reliable PAGE (polyacrylamide gel electrophoresis) protein analysis.
Discover our Complete PAGE protein analysis system.
FastGene PAGE Protein System - Protein Electrophoresis Chamber
- Complete set for PAGE protein analysis
- Most flexible use for 1−4 (pre-cast or hand-cast) gels
- Compatible with different pre-cast gels (Bio-Rad™, ThermoFisher, FastGene®)
- Hand-cast gel set included (1 mm gels)
- Easiest gel hand-casting − No leaking!
- Glass plate holder and tube holder included
- Additional 0.75 mm / 1.5 mm hand-cast sets available
Powerful protein analysis via PAGE
PAGE stands for Polyacrylamide Gel Electrophoresis and describes an analytical method in biochemistry for the separation of differently sized protein mixtures in an electric field. During PAGE, proteins migrate through a gel matrix in response to an applied electic field. Smaller proteins travel faster through the gel than larger proteins, leading to a size dependent separation. The most popular form of PAGE is SDS-PAGE. The detergent sodium dodecyl sulfate (SDS) is added for PAGE sample preparation and is also part of the buffer composition. The treatment with the harsh detergent leads to full protein denaturation and unfolding. SDS binds to hydrophobic parts of the unfolded protein and masks the intrinsic charge of the protein with its own negative charge. As a consequence, SDS-protein complexes migration is predominantly dependent on the size of the protein, allowing an estimation of its molecular weight.
Complete set for PAGE protein separation
The FastGene® PAGE Protein System contains all the necessary equipment you need for PAGE protein analysis.
The electrophoresis tank can hold a maximum of 4 gels simultanously for electrophoretic protein separation.
Broad gel compatibility for highest flexibility
The FastGene® PAGE Protein System is compatible with a wide range of pre-cast gels (e.g., FastGene® gels, Bio-Rad TGX™ gels or ThermoFisher mini gels).
It also runs hand-cast gels included in the PAGE Protein System Set (for casting 1 mm thick gels). Also available are FastGene® hand-cast gel sets for gel preparation with 0.75 mm or 1.5 mm gel thickness (product link).
For use of different gels, three different U sealings are included in the FastGene® PAGE Protein System:
- U sealing strip long, for 10 cm x 10 cm gels (e.g., ThermoFisher mini gels)
- U sealing strip short, for 10 cm x 8 cm gels (Bio-Rad TGX™ gels)
- U sealing strip FastGene®, for 10 cm x 8 cm gels (FastGene® gels and hand-cast gels)
Comfortable handling and setup
The FastGene® PAGE Protein System can easily be setup. Plastic dummy cassettes are included for flexible use with 1−4 gels.
Easiest gel hand-casting − No leaking!
The FastGene® PAGE Protein System includes a hand-cast set for casting 1 mm thick gels. The set alllows easiest gel hand-casting withour leaking!

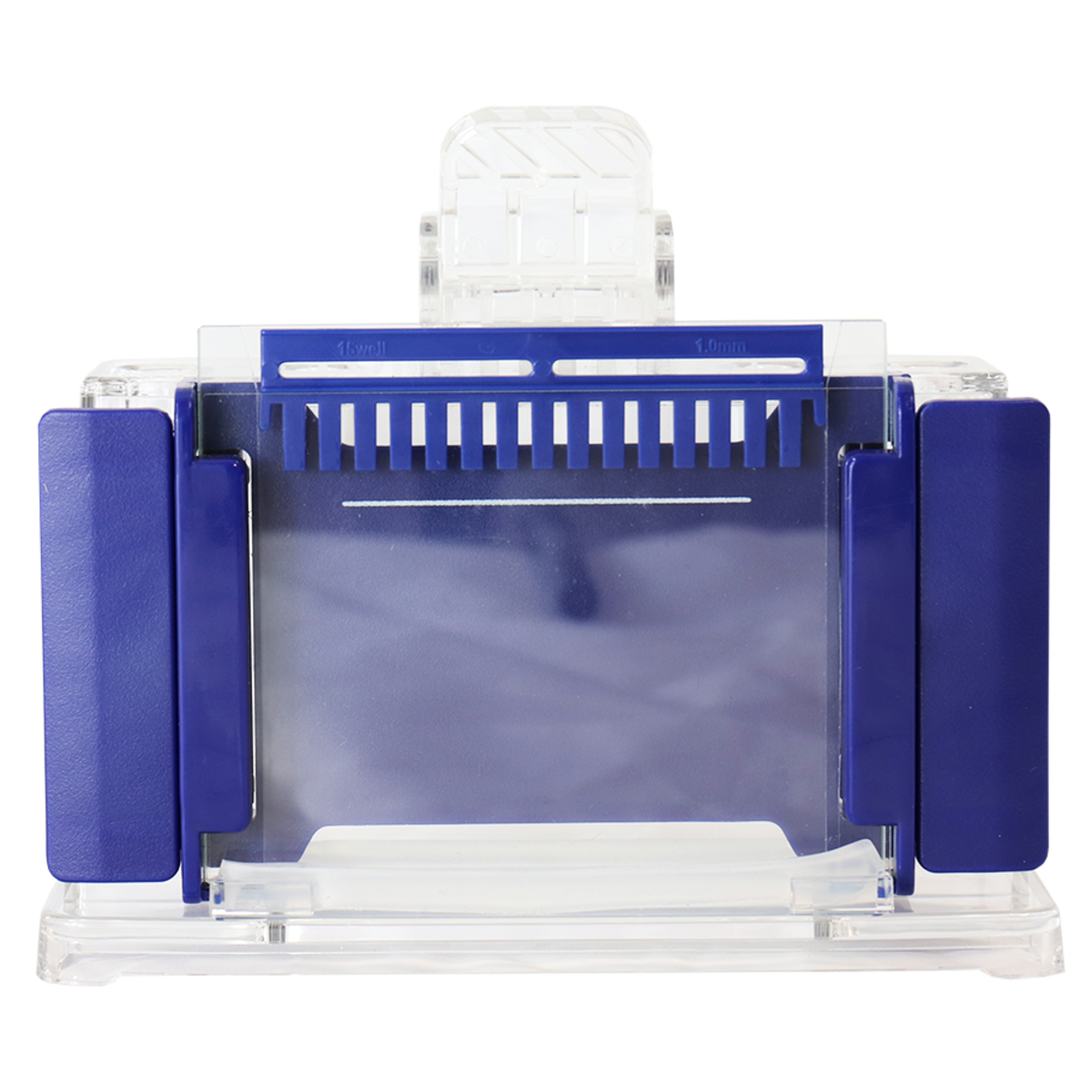

Another gel-thickness is needed? No problem, 0.75 mm (PG02) and 1.5 mm (PG03) gel casting sets are separately available.FastGene PAGE Protein System - Gel Casting Base with Gel
Ordering information
| Cat-No. | Item | Size | Price (CHF) |
|---|---|---|---|
| PG01 | FastGene PAGE Protein System | 1 each | 1'429.00 |
Accessories
Separately available accessories of the FastGene PAGE Protein System:
- Flexible use and easy upgrading of the FastGene® PAGE Protein System (PG01)
- For pre-cast and hand-cast gels
- Accessories: glass plates, chamber tank, casting clips and sealing gaskets
FastGene® Glass Plates Short - PG04
Short flat glass plates for hand-cast gels (10 glass plates)
included in PG01
FastGene® Gel/Blot Chamber Tank - PG05
Large gel electrophoresis buffer tank (1 chamber tank)
included in PG01

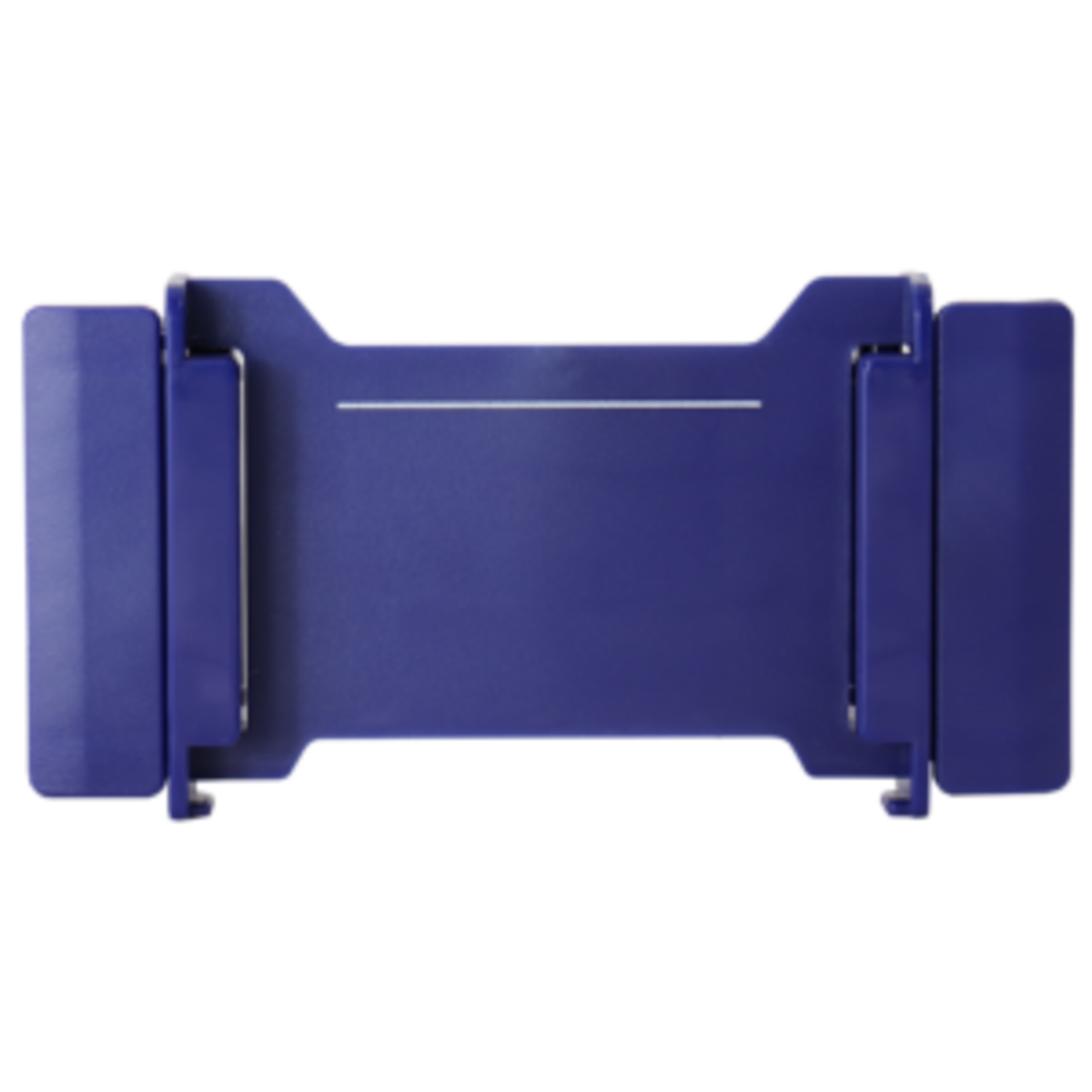

FastGene® Gel Casting Clip - PG06

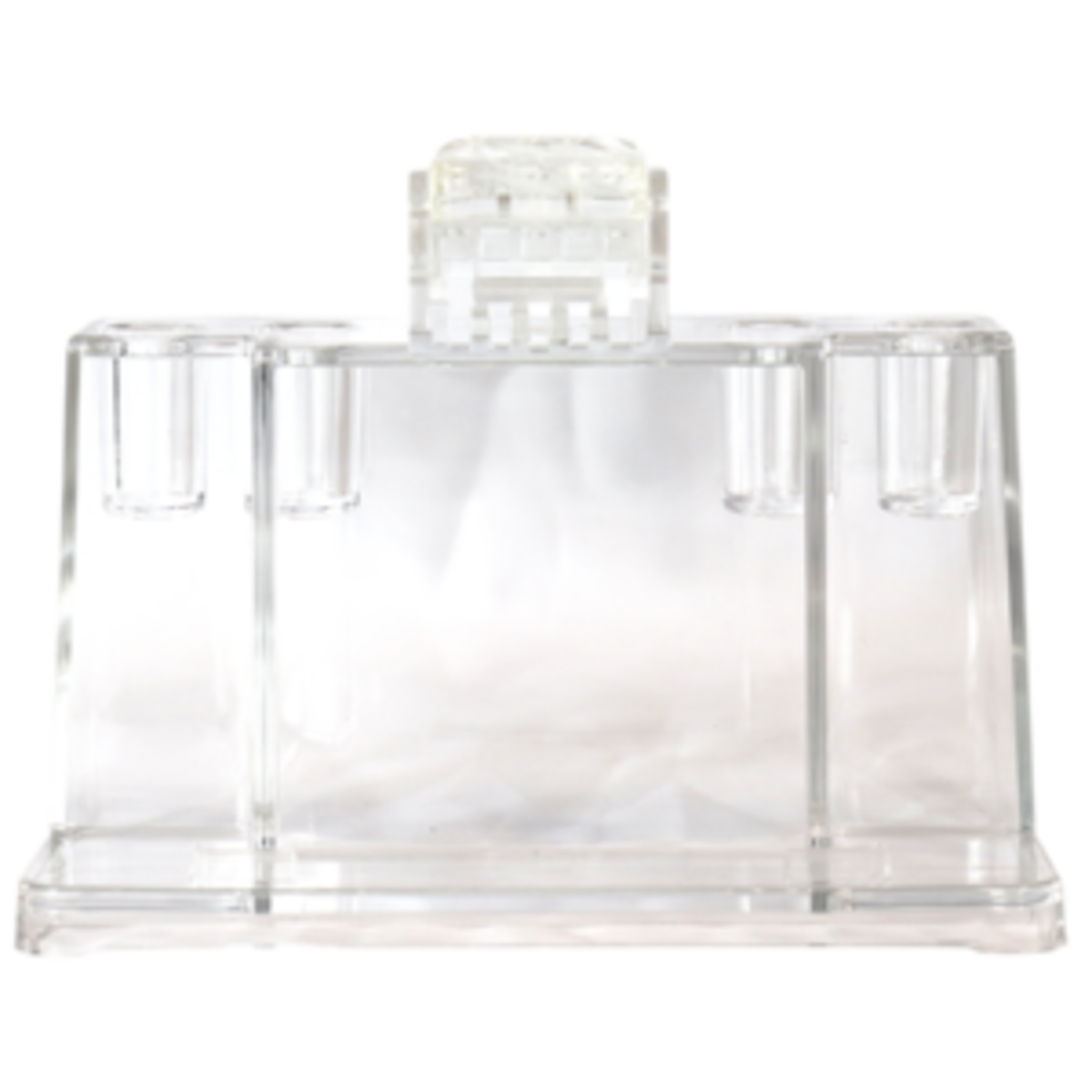

Blue gel casting clips (2 pieces) and Gel casting bases (2 pieces)
included in PG01
FastGene® Sealing Gaskets - PG07
Sealing gaskets for gel casting (5 pieces)
included in PG01

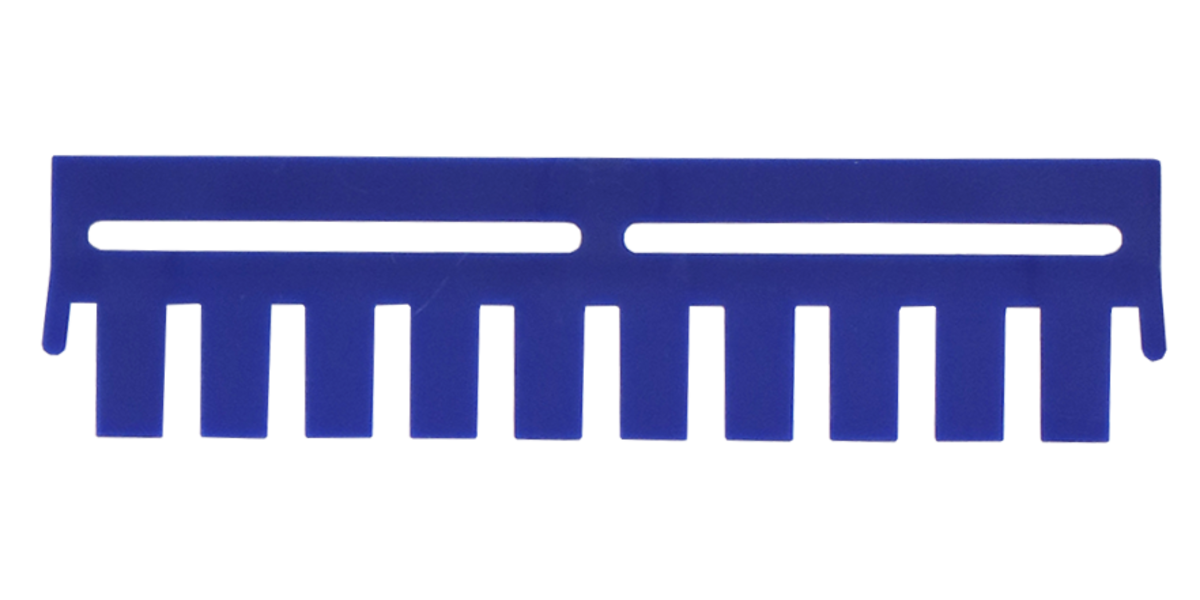

FastGene® Comb Set 075 - PG02
| FastGene® Comb Set 100 - PG10
| FastGene® Comb Set 150 - PG03
|
