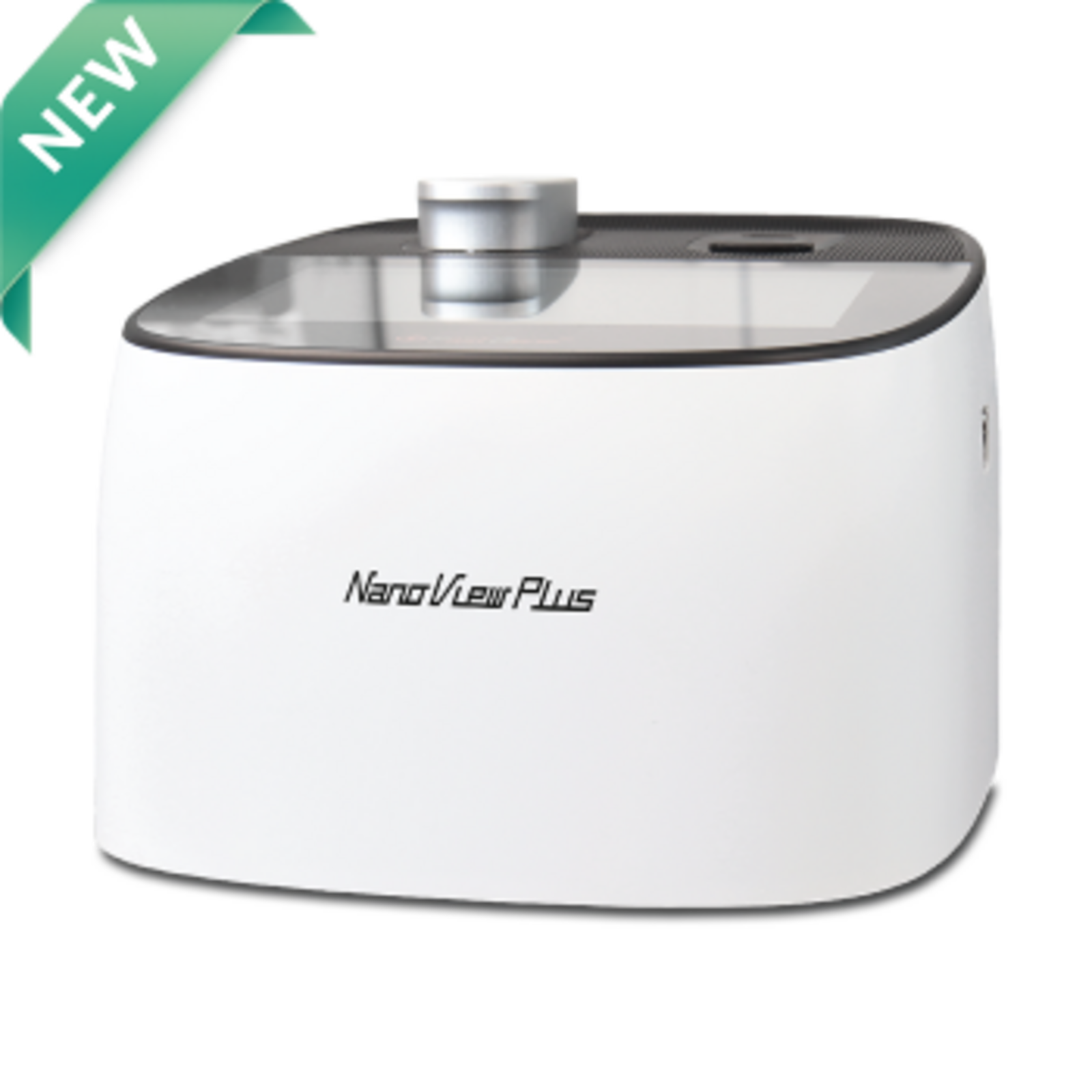

FastGene NanoView Plus Photometer
High-precision microvolume & cuvette photometer
- Enhanced precision and stability due to the Xenon flash lamp
- Fast measurement time: < 1 sec
- Built for everyday workflows:
- Fast measurements
- Clear purity assessment
- Reliable performance across a wide range of sample concentrations
Product details
Reliable reads | Clear decisions
The FastGene® NanoView Plus Photometer is a high-precision microvolume and cuvette photometer for rapid DNA/RNA/protein quantification and an OD600 mode for bacterial density measurements.
- 230 nm – contaminants
- 260 nm – nucleic acids
- 280 nm – proteins
- 600 nm – OD600 (bacterial density)
The FastGene® NanoView Plus Photometer is built for everyday workflows:
- Fast measurements
- Clear purity assessment
- Reliable performance across a wide range of sample concentrations
Specifications
| Display | 7″ LCD touch display (glove compatible) |
| Measurement time | < 1 sec |
| Wavelengths |
|
| Wavelenght accuracy | ± 1 nm |
| Sample volume | 1–2 µL (microvolume) |
| Light source | Xenon flash lamp |
| Detector | CMOS linear image sensor (2048 pixels) |
| Detection limit |
|
| Connectivity / Storage |
|
| Weight | 3.0 kg |

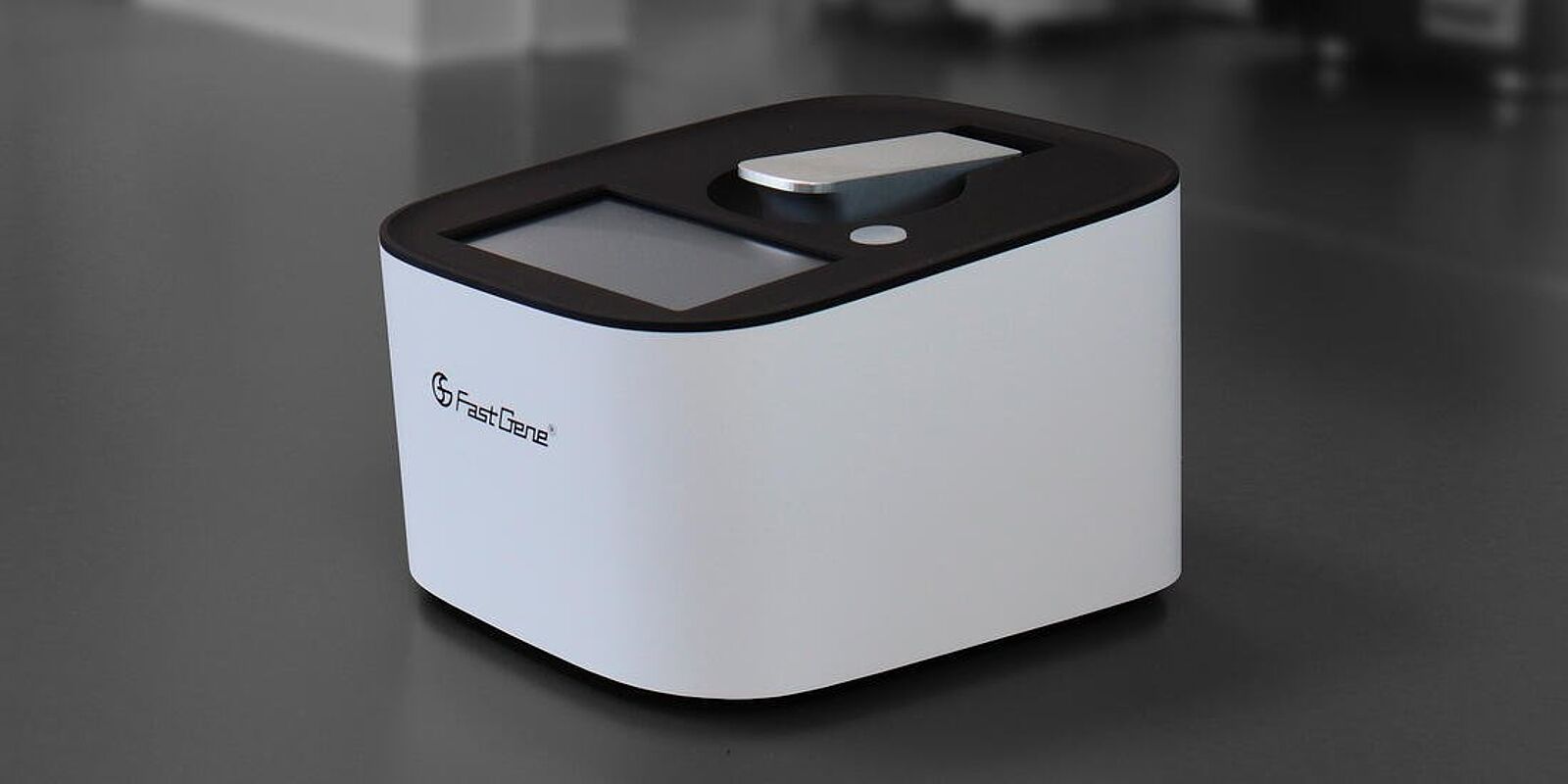

FastGene NanoSpec Spectrophotometer
The all-round microvolume UV-VIS spectrophotometer.
- Best device performance: Microvolume drop and cuvette reader
- Powerful: high end quantitative DNA/RNA and protein analysis (full spectrum: 190-850 nm)
- Cost-saving: stand-alone device with integrated control unit
- Convenient usage: simple and intuitive menu, glove-compatible touch-screen
- Highest reliability: 20 pre-configurated measuring modes
Product details
The FastGene® NanoSpec Photometer is a compact microvolume UV-Vis spectrophotometer characterised by highest user-friendliness.
It enables fast and easy quantification and analysis of nucleic acids and proteins by UV-Vis absorption spectrophotometry.
Integrating a microvolume sample measuring mode and a cuvette measuring mode, the measurement of a wide concentration range is enabled.
You can easily set over 20 measuring modes.
Best device performance | and versatile quantitative analysis (e.g., dsDNA, ssDNA, RNA, lysozyme, BSA, OD600) due to full spectrum analysis (190 nm–850 nm) |
Extended use | for protein measurement and cell counting due to the cuvette mode |
Sample-saving | due to microvolume mode (1–2 µL sample volume) |
Convenient utility | due to an intuitive menu and user-specific workspace after individual login |
Clean workplace | due to glove-compatible LCD touch-screen |
Highest reliability | in results due to 20 pre-configurated measuring modes ensuring secure utilization |
Cost-saving | due to integrated control unit and extensive application options |
Flexible usability | e.g., in training laboratories, due to a small footprint of about DINA4-size (21,6 cm x 29 cm) and light weight (3.0 kg) |
Comfortable and safe data management | due to alternative saving at the device and transfer via USB flash drive |
Reduced application time | due to short measurement times (<8 sec), a series-measurement function, and no need for a lamp warming-up |
Full spectral analysis
The FastGene® NanoSpec measures the absorption spectrum UV-VIS (190 nm–850 nm) in seconds using by array type spectrophotometer technology with Xenon lamp and CMOS sensor (2048 pixels).
Measurement modes and configuration
The designated factor of each of the 20 pre-configurated measurement modes is set as the default value, so that no adjustment is needed.
- Nucleic acids: dsDNA | ssDNA | RNA | miRNA | Customize*
- Protein UV: BSA | SA | IgB | IgE Human | Lysozyme | OD1 | Mol. Ect. Coeff. | Ext. Coeff.
- Protein assay: Bradford | Biuret Assay | BCA Assay | Lowry Assay
- More: Kintetics | OD600 | Photometric | Spectrum | ABS Ratio | Concentration | Quantification
*The input mode (‘Customize’) is provided to allow the users to set a factor value which is different from the default to enable maximal flexibility and specificity.
Specifications
Specification | FastGene® NanoSpec Photometer |
| General specifications | |
| Photometric system | Microvolume spectrophotometer |
| Footprint (W * D) | 216 mm x 290 mm |
| Weight | 3.0 kg |
| Optical specifications | |
| Detector | CMOS linear image sensor (2048 pixels) |
| Light Source | Xenon flash lamp |
| Lifetime | ~ 10 years |
| Wavelength range | 190 – 850 nm |
| Measurement time | < 8 seconds |
| Spectral bandwidth | 1.5 nm (FWHM at Hg 253.7 nm) |
| Wavelength display (setting) | 1 nm |
| Wavelength accuracy | ± 1 nm |
| Absorbance precision | 0.002 AU (0.5 mm path) or 1 % |
| Absorbance accuracy | 3% (at 0.97A at 302 nm) |
| Processing / Power / Software | |
| Software compatibility | Windows® 10 and 11 |
| CPU | Octa Core ARM® CortexTM-A53 Processor |
| Storage | 32 GB internal storage |
| Connectivity | 4 x USB-A ports, Ethernet, RS232 |
| Operating systm (OS) | Android |
| Display | |
| Display | 7-inch, 1280 x 800 HD color display |
| Touchscreen | Multipoint capacitive touch |
| Glove compatibility | Compatible with lab gloves |
| Microvolume performance | |
| Minimum sample volume | 1 µL |
| Absorbance range | 0.04 – 330 A (10 mm equivalent) |
| Detection limit (microvolume) |
|
| Maximum concentration |
|
| Pathlength | 0.05 – 0.7 mm |
| Cuvette performance | |
| Photometric range | 0.004 – 2 A |
| Detection limit |
|
| Maximum concentration |
|
| Center height | 8.5 mm |
| Additional accessories | |
| Thermal printer for FastGene® Photometer | Cat. No. YJ-360T(S) | 1 printer and 1 roll paper | Please contact us for more information. |
| Thermal roll paper | Cat. No. CSM0026 | Pack of 20 rolls | Please contact us for more information. |
